Architectural film

Outline

Special insulation film developed by NASA as part of Apollo's plan as a glazing insulation film (USPTO No. 3775,226) is an innovative glass windowing solar thermal film that is made by integrating special processed fine aluminum particles into polyester film by a highly precise vacuum computer, and has excellent eye color insulation and sun film.

Features and Benefits

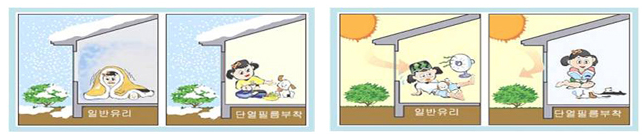

By reflecting and blocking more than 80% of the solar energy entering the windows in summer, it greatly reduces cooling costs and prevents loss of indoor heat released into the windows in winter, thereby increasing heating costs by 40% and preventing dew condensation.

UV protection
It blocks more than 99% of the sun's energy from glass, preventing discoloration of all indoor products, such as our furniture, interior decorations, and clothing displayed in windows, and also protects against premature skin aging and some potential skin cancer.

Privacy Protection
During the day, there is little visible inside through glass from outside (light relationship), and inside, the exterior is well visible, so it is comfortable and the secrets of privacy infringement are guaranteed.

Reinforcement of safety
It only cracks in case of glass damage caused by external shocks, and prevents the scattering of debris, making it safe to prevent accidents in case of emergency.

A unique exterior of a building
Due to the diversification of the construction film, the glass color can be harmonized with the building to create elegance and style outside the building to show a unique appearance.

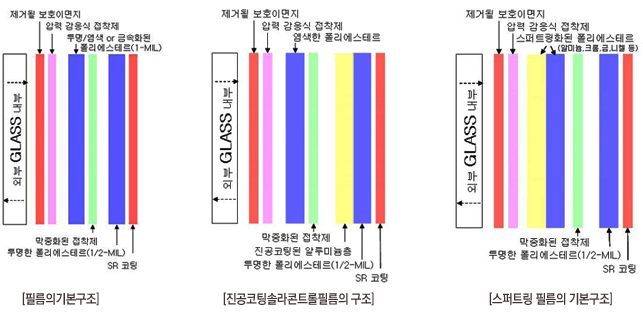

Structure

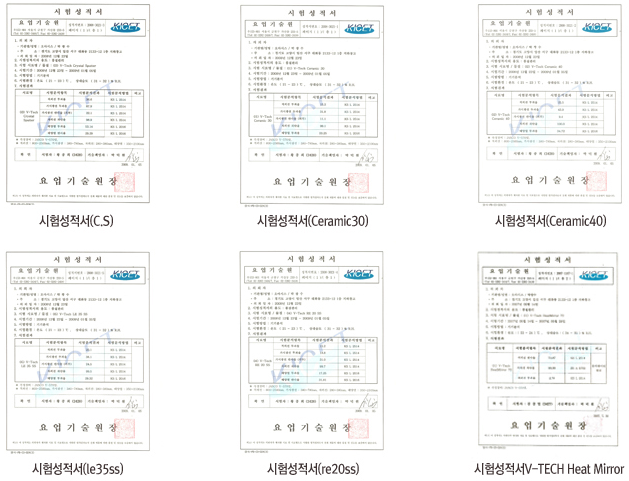

Test report

Product detailed specifications
(Heat reflection film)

Heat reflection film(Heat Mirror)
Heat Mirror Film is the only thermal reflection film in the world that can block up to 98% of thermal infrared while maintaining illumination unlike conventional films.
The best performance
Glass is the best thermal reflection system that does not overheat, reflects 78% heat and blocks more than half of the total solar energy, preventing uneven room temperatures, heat spots and unpleasant solar inflows.
Protection
Such as glass, furniture, goods and artwork by blocking 99% or more of the UV rays entering the best protection room, effectively protecting against premature skin aging and some potential skin cancer.
Heat Mirror 70
Visible Light Transmittance (%) Visible Light Reflection (%) Infrared Rejection(%)
72 8 97
Infrared Reflection (%) Ultraviolet Transmittance (%) Total Solar
Energy Rejection(TSER) (%)
78 <1 55
Heat Mirror Visible Light Transmittance (%) Visible Light Reflection (%) Infrared Rejection(%) Infrared Reflection (%) Ultraviolet Transmittance (%) Total Solar Energy Rejection(TSER) (%)
Heat Mirror 70 72 8 97 78 <1 55

1/4” (6㎜) Single clear

Comparative analysis table with general film
Part General Insulation Film V-TECH
Visible light transmittance 30~50% 72%
Infrared Rejection 40~70% 97%
Color darkens slightly with little difference from conventional glass
Nightly retroreflections with nightly retroreflections disturbing night view No difference from existing glass

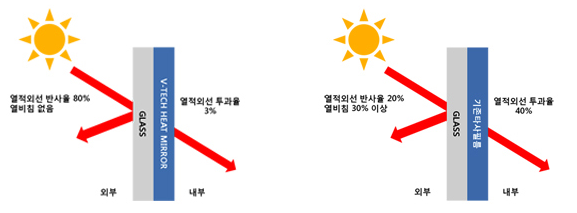

Heat reflection absorption method - glass gets hot reflection method - glass is not hot

1/4” (6㎜) Single clear

ULTRA VISION

V-tech's unique 3-in-1 technology strengthens the core function of insulation film.
V-Tek Ultra Vision is a 3-way multiplex film that protects the privacy of the outside eye and allows you to enjoy the view of the outside at night without any internal ambiguity.

Features 1. High Efficiency solar control
Higher than Silver and Stainless, which are used most often for the train corps.
ST-Steel Silver Ultra Vision
Performance/Product ST-Steel Silver Ultra Vision
VLT 23 33 25
TSER 63 64 66

1/4” (6㎜) Single clear

Features 2. Blocking the privacy of the exterior during the day while clearly visible from the inside.
Feature 3. Protects your daytime privacy
Low internal reflection at night, there is securing the outside view, so you can enjoy the night view like a regular glass.
Ultra Vision 25
Visible Light Transmittance (%) Visible Light Reflection Decreases glare
25% 내부
13%		 외부
26%		 72%
Shading Coefficient Total Solar Energy Rejection(TSER)(%) U-Value
0.34 66% 0.92
Ultra Vision 15
Visible Light Transmittance (%) Visible Light Reflection Decreases glare
15% 내부
13%		 외부
36%		 83%
Shading Coefficient Total Solar Energy Rejection(TSER)(%) U-Value
0.29 75% 0.92
Product name Visible Light Transmittance (%) Visible Light Reflection Decreases glare Shading Coefficient Total Solar Energy Rejection(TSER)(%) U-Value
내부 외부
Ultra Vision 25 25% 13% 26% 72% 0.34 66% 0.92
Ultra Vision 15 15% 13% 36% 83% 0.29 75% 0.92

1/4” (6㎜) Single clear
